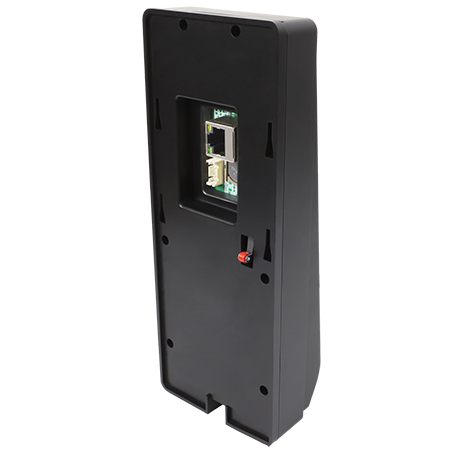

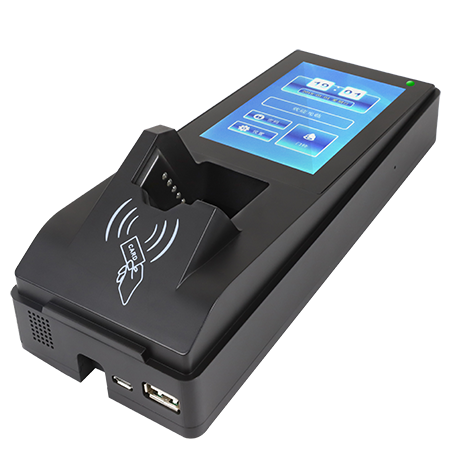

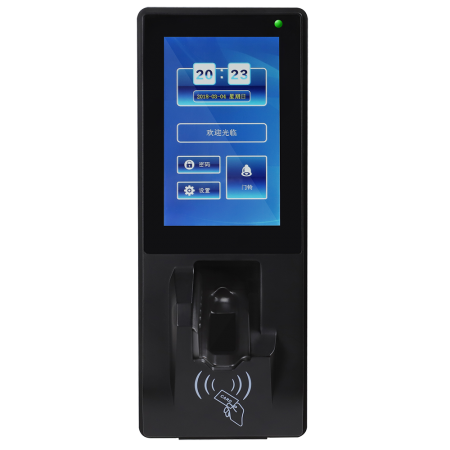

Finger Vein Access Control Terminal

XG-D700

XG-D700 finger vein access control is a full function and multi-purpose access control terminal launched by XGZX, equipped with 4” high-definition, view angle 178 degree IPS screen. The display adopts G+G process sensitivity and anti-interference to execute the intelligent terminal standard. It provides rich external interfaces such as network, U disk, Wigan, relay, etc. The collected data is compatible with the existing XG-V6S, XG-V6 and their extended application products, so that the user data of server and terminal, single machine and multi machines can be shared.

Overview

XG-D700 processor adopts the high-performance 32-bit microprocessor developed by Synochip based on Cordis 6+ RISC core, which has high-performance DSP computing ability, and the core adopts SCM architecture. The working frequency of the processor is 312MHZ and 128K bytes on-chip RAM. It provides multilingual SDK, including C++, VB, OCX, JAVA, etc., to meet the application needs of users in various industries. The products are suitable for bank finance, military gun depot, national security of the government, education and social insurance, office building, intelligent estate and other places.

Parameter

Authentication system	1：1/1：N authentication，support front-end, back-end comparison
Identification method	finger vein / card + finger vein /group number + finger vein / IC card / password
Recognition speed	1:1＜1 second，1:N(N=500) ≤1.5 seconds
Management software	Single machine access control parameter management, personnel management, background verification service
Secondary development platform	Windows、Linux、Android、IOS
Communication interface	USB2.0、wired network、RS485、wireless extensible
Access control interface	Relay、Wigen output
Working voltage	DC 9～30V wide voltage input
Working current	＜500mA/12V
Standby current	＜300mA/12V
Working environment	temperature：-20℃～60℃ humidity：20%～80%RH

Features

« Product features:

● The only SCM architecture in the existing finger vein access control

● Randomly switch the certification mode of front-collect back-end comparison or front-collect front-end comparison

● True color screen, not traditional TFT LCD, high-definition full angle IPS screen, with a resolution of up to 800*480

● Multi touch points G+G capacitance screen, farewell to traditional resistance screen, more sensitive touch

● On-screen doorbell, not traditional mechanical doorbell;

● Support U disk data backup, data import and export

« Industrial design:

●The access control collection window adopts open design, which makes the user experience the product more intuitively, convenient for cleaning and daily maintenance

●The camera lens adopt multi-mode, multi-layer and high transparent glass design, which can effectively suppress distortion and stray light interference

●IP42 protection level

« Product application:

● Bank finance, military gun depot, national security of the government, education and social insurance, office building, intelligent estate and other places
