Module Customization

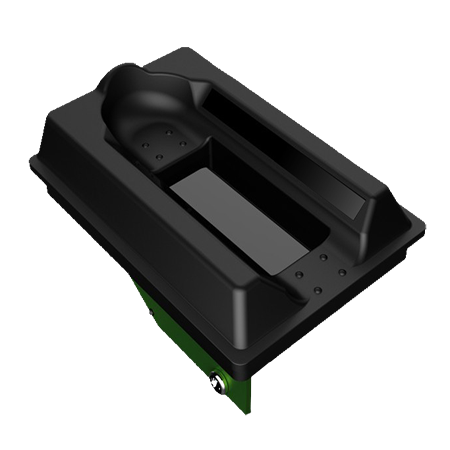

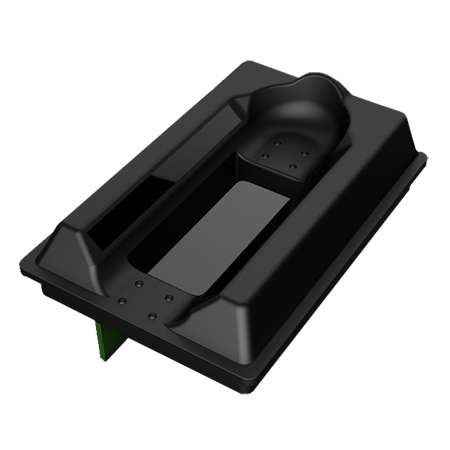

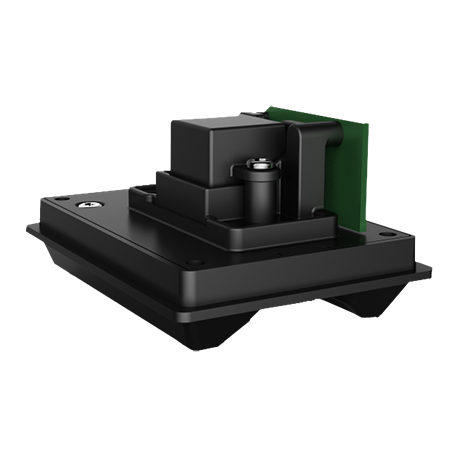

XG-V8T
XG-V8T is a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules. It has high-performance DSP computing ability, the core adopts SCM architecture. Bilateral light source design has the characteristics of fast power on, high efficiency, low power consumption, high integration, small size and never crash.
Module Customization XG-V8T
Overview
The SOC of XG-V8T is a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules. It has high-performance DSP computing ability. The core adopts SCM architecture. XGZX is the only core technology manufacturer in vein recognition industry that vein algorithm can run on single-chip microcomputer. The typical operating frequency of SOC is 128MHZ, and the operation speed of 100 ID/300 template can be fast in 1S. SOC has rich peripheral interfaces, such as USB2.0 device, full duplex UART, PWM voice output, etc. SOC also has extended functions, such as Wigan input and output, relay, key indicator light, I2C communication, etc., which are very suitable for the secondary development and application of small terminal equipment, access control attendance, smart cabinet industry.
Parameter

Identification method

1:N/1:1 comparison

Recognition speed

<1 second

Communication interface

USB2.0、UART

Support platform

Windows、Window CE、Linux、Android、IOS、MCU

Support platform

DC 5.0V(±5%)

Working current

<120mA/5V

Working environment

temperature:-20℃~60℃      humidity:20%~80%RH



Features


«  Product Features:

● XG-C6S5, a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules, is unique and professional;

● Finger vein module realized by single-chip microcomputer platform for domestic exclusive application;

● Advantages of single chip microcomputer platform: simple hardware, fast power-on speed, high efficiency, low power consumption, high integration, small size, and never crash;

● Bilateral light source product design;


« Function extension:

● Extensible support Wigan interface

●Expandable support for buttons, indicator lights, relays, alarms, networks etc.

● Support extended PWM voice output


«  Industrial design:

● The finger vein optical lens adopts 4G design pure glass technology, which has stronger light transmission, less distortion and no aging.

● The window filter adopts tempered glass and double-layer coating process, which has better light transmission and stronger hardness.


«  Applications:

●Small terminal equipment, access control attendance, access gate, intelligent cabinet, building ladder control
