Finger Vein Smart Lock Module

XG-V8

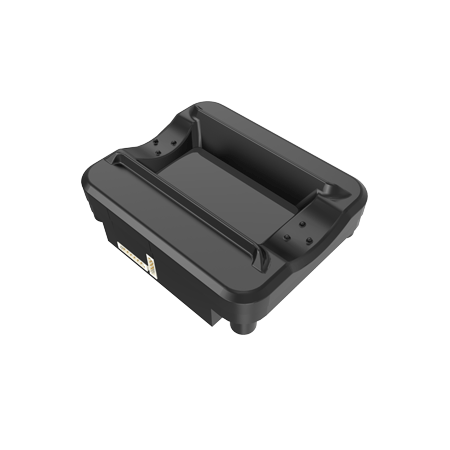

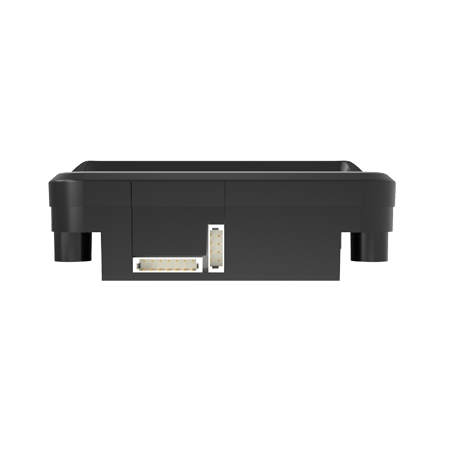

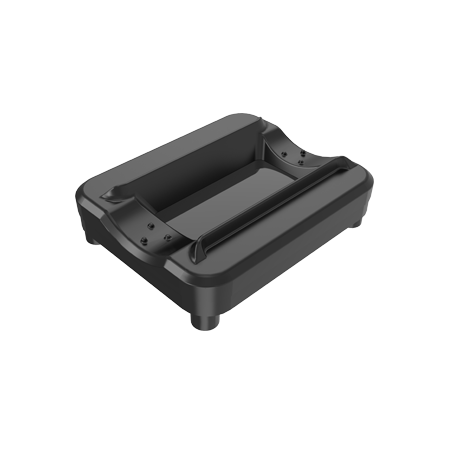

XG-V8 is an ultra-thin finger vein smart lock module with a total thickness of less than 14.7mm. The exclusive finger vein module can be matched with fingerprint protocols. It has fast power on speed and very low power consumption, the performance of hardware and software of the module is comparable with that of fingerprint reader.

Overview

The MCU of XG-V8 adopts AS608 chip, ARM Cortex-M core 32-bit microcontroller, and the operating frequency is 144MHZ. When the user capacity is 100 fingers, the longest recognition speed does not exceed 600mS, the normal recognition speed averages 200mS, the power-on speed is less than 10mS, the working power consumption of the reader is only 27.5mA, the low power consumption standby is as low as 4uA, suitable for the secondary development of fully automatic intelligent locks, smart door handles, small terminals and other products.

Parameter

Identification method	1：N/1：1 comparison
Recognition speed	＜1 second
Communication interface	USB2.0、UART
Working voltage	DC 5.0V（±0.5V）or DC 3.3V (±0.3V)
Working current	＜27.5mA/5V or ＜27.5mA/3.3V
Standby current	＜4uA
Power management mode	capacitor induction power on, system startup time＜10mS
Working environment	temperature：-20℃～60℃ humidity：20%～80%RH

Features

« Product Features:

● Exclusive finger vein module can be matched with fingerprint protocols

● Fast power-on speed, extremely low power consumption, the smallest volume in China

● Ultra-thin finger vein smart lock module, the total thickness is less than 14.7mm

● The lock handles of which The thickness space is greater than 8.7mm are all fit

● Waterproof, no dust and water accumulation, no need for cleaning and maintenance

« Function extension:

● Full duplex serial port TTL level supports extended SPI mode

● Support extended PWM voice output

« Industrial design:

● Adopt dustproof and waterproof design, IP65 protection grade

● The camera lens adopts multi-mode and multi-layer high-transparent glass design , effectively suppress distortion and stray light interference

« Applications:

● Fully automatic intelligent lock, intelligent door handle, small terminal
