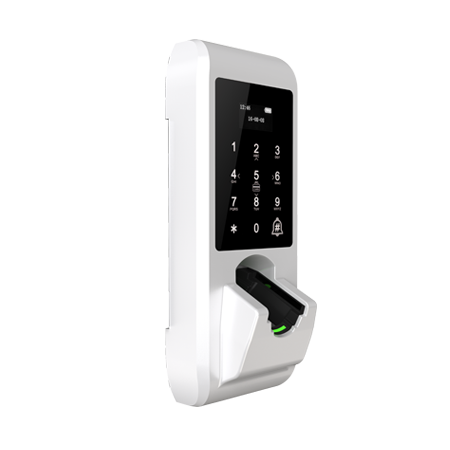

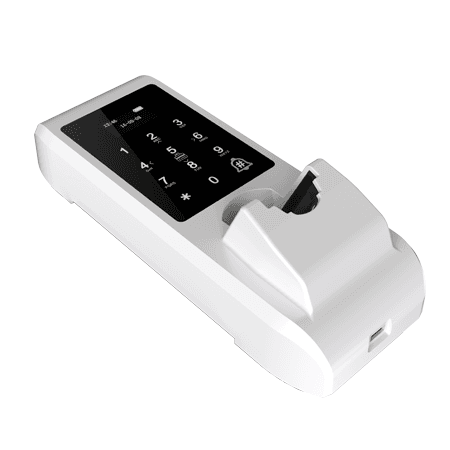

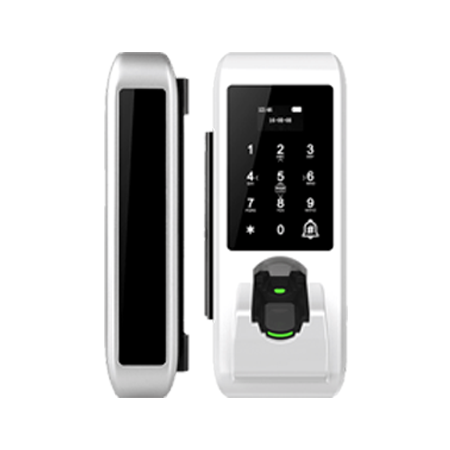

Finger vein glass door lock

XG-D500

XG-D500 is a high-end glass door intelligent lock. It is very little affected by the external environment when use. It can quickly identify to unlock the lock in case of dry and wet fingers, peeling fingers, fingerprint wear etc. Applicable to: office glass door and indoor wooden door.

Parameter

Unlocking mode	finger vein、password、card、mobile APP
Highly anti-counterfeiting	in vivo recognition, unique, unduplicated, will not be stolen
Information capacity	100 single finger veins, 300 single password groups, 299 single cards
Card type	MF card、ID card、bank card、CPU card
Language	Chinese-English
Display	1.3”OLED display
Working power supply	4 1.5V AA alkaline batteries
Static current	≤50uA
Emergency power	external power supply available for emergency unlocking
Drive output	working voltage 3V～6V
Drive capacity	≤500mA（ maximum drive output current ）
Alarm voltage	≤ 4.8V in accordance with national standard（80%±5%）
Working environment	temperature：-25℃～+65℃ humidity：5～95％RH （no condensation）

Features

Product features:

● In vivo recognition, unique, unduplicated, will not be stolen

● Multimode door unlocking, finger vein, card swiping and temporary encryption key through mobile APP

●Multifunction, hierarchical authority management
